Information

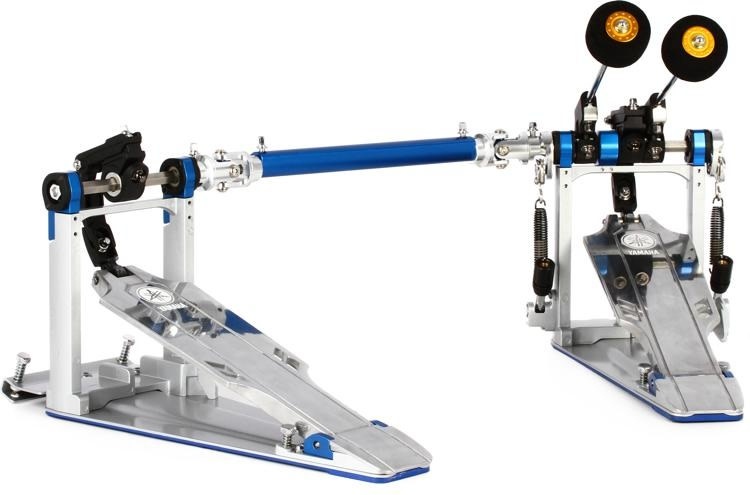

The Yamaha DFP9D Direct Drive Double Bass Drum Pedal is now available with us at Graham Russell Drums!

The Yamaha DFP9D is the direct-drive model in Yamaha’s flagship FP9 series, designed to deliver a fast, precise and highly responsive double bass drum pedal platform. Instead of a chain or strap, the pedal uses a rigid direct drive linkage, creating an immediate transfer of motion from the footboard to the beater with minimal mechanical lag. This design produces a highly articulate response and a very consistent feel throughout the stroke. The pedal also features Yamaha’s Quick Adjusting Cam / Link, allowing the cam position to be set in three different positions to alter the pedal’s response and resistance curve while maintaining the accuracy and sensitivity of the direct drive system.

The FP9 series incorporates several mechanical refinements designed to improve stability and smoothness of operation. Yamaha’s axle stabilising bearing chamber helps maintain precise alignment between the shaft and bearings, reducing friction and supporting smoother rotation through the pedal stroke. Beater angle and footboard angle can be adjusted independently, allowing players to reproduce preferred setups accurately using the integrated angle indicator. The pedal is supplied with weight-adjustable beaters, including interchangeable aluminium (3 g) and brass (9 g) weights that allow players to modify the pedal’s feel and attack. The secondary pedal connects via an all-bearing universal joint drive shaft for smoother slave pedal motion, while anti-skid heel spikes and a secondary pedal anchor help keep the unit firmly positioned during performance. The pedal is supplied with a Yamaha semi-hard carrying case for safe storage and transport.

Key Features

• Direct drive linkage for immediate and highly responsive pedal action

• Professional double bass drum pedal configuration

• Quick Adjusting Cam / Link with three cam positions to alter pedal response

• Independent beater and footboard angle adjustment with angle indicator

• Weight-adjustable beaters with interchangeable 3 g aluminium and 9 g brass weights

• Axle stabilising bearing chamber for precise shaft alignment and smooth rotation

• Ball-bearing drive connection at the footboard for smoother action

• Low-profile stabilising hinge for consistent footboard movement

• Easy-access auto-lock spring tension adjustment system

• All-bearing universal joint drive shaft for smooth slave pedal linkage

• Anti-skid heel spikes and secondary pedal anchor for improved stability

• Supplied with Yamaha semi-hard carrying case and drum key

For more information check out our Buyer's Guide!

Buy a Yamaha DFP9D Direct Drive Double Bass Drum Pedal from Graham Russell Drums and receive it on our next day delivery service when you order before 2pm!
