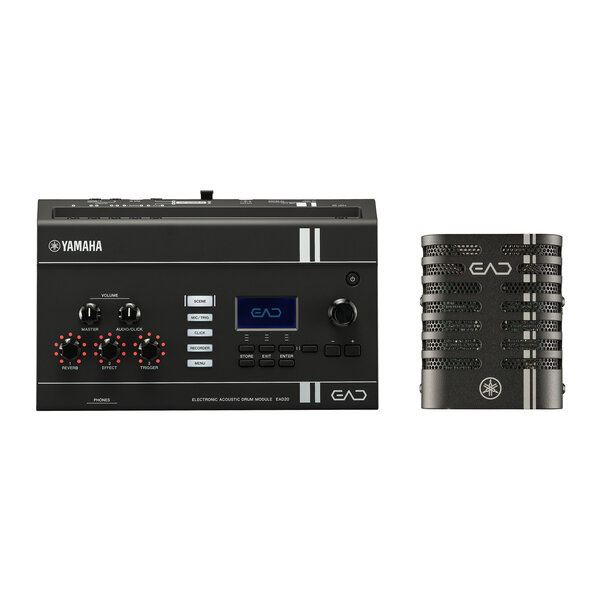

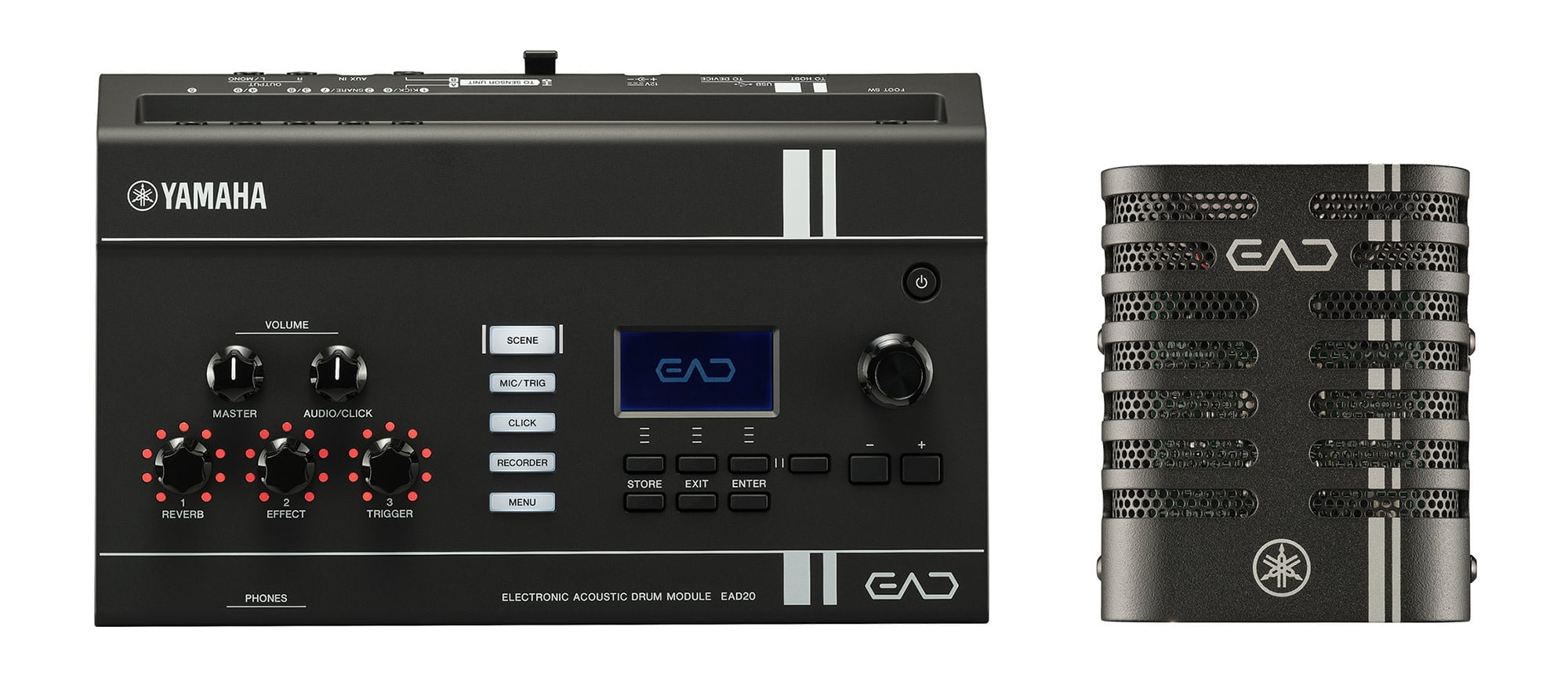

Yamaha EAD20 Electronic Acoustic Drum Module

The brand new Yamaha EAD20 Electronic Acoustic Drum Module is now available with us at Graham Russell Drums!

The Yamaha EAD20 is the next generation of Yamaha’s Electronic Acoustic Drum system, designed to capture, monitor, process and record a complete acoustic drum kit from a simple bass drum-mounted sensor setup.

The newly developed sensor unit combines stereo microphones with an integrated bass drum trigger, allowing the natural acoustic kit sound to be captured while also supporting electronic sounds, effects and additional triggers. The EAD20 features Yamaha’s AWM2 sound engine with 2,203 built-in Voices and 256-note polyphony, alongside a wide range of reverb, EQ, compression and other processing options.

For recording and content creation, the EAD20 offers 8-input / 10-output, 24-bit USB audio at 44.1kHz, making it suitable for multitrack recording, DAW integration, streaming and online content. It also supports Yamaha’s Rec’n’Share and EAD Touch apps for recording, video creation and graphical control of Scenes, effects and trigger settings.

Built-in sampling, looping and recording functions expand the creative possibilities further, while automatic microphone gain, trigger and crosstalk setup help make configuration quick and straightforward.

Key Features:

• Brand New Yamaha EAD20 Electronic Acoustic Drum Module

• Next-Generation Yamaha EAD System

• Newly Developed Bass Drum-Mounted Sensor Unit

• Stereo Acoustic Drum Capture

• Integrated Bass Drum Trigger

• AWM2 Sound Engine

• 2,203 Built-In Voices

• 256-Note Maximum Polyphony

• 50+ Preset Scenes

• 200 User Scenes

• Reverb, EQ, Compression and Additional Effects

• Assignable Modifier Controls

• Supports Additional Electronic Pads and Acoustic Drum Triggers

• Up to 9 Pads Supported with Y-Cable Configuration

• 8-In / 10-Out 24-Bit USB Audio at 44.1kHz

• 2-In / 2-Out USB Audio at Up to 96kHz

• Built-In Recorder

• Built-In Looper

• Sampling Function

• User Sample Import

• Automatic Microphone Gain Setup

• Automatic Trigger and Crosstalk Setup

• Compatible with Yamaha Rec’n’Share

• Compatible with Yamaha EAD Touch

• AUX Input

• Main Stereo Outputs

• Standard and 3.5mm Headphone Outputs

• USB Flash Drive Support

• Main Module Dimensions: 300 x 70 x 190mm

• Main Module Weight: 1.4kg

Buy the Yamaha EAD20 Electronic Acoustic Drum Module from Graham Russell Drums and receive it on our next day delivery service when you order before 2pm!
